V3 Request HTTP API resources

In this article we will see how to request HTTP API resources and use it in Cally Square project.

Method 1: RestAPI block

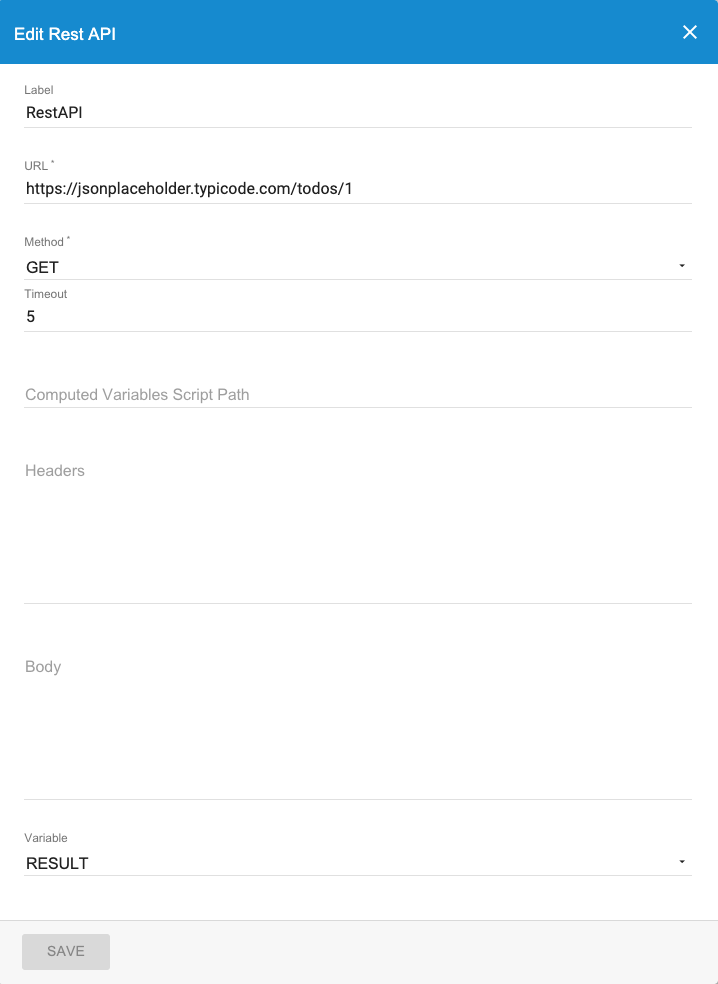

Using RestAPI block in Cally Square

Fill the RestAPI block as described below:

Assuming the response of the request is:

{ "userId": 1, "id": 1, "title": "delectus aut autem" }

the application will set following variables:

RESULT_STATUS_CODE "200"
RESULT_STATUS_MESSAGE "OK"
RESULT.userId "1"
RESULT.id "1"
RESULT.title "delectus aut autem"

Method 2: External Script

Create script

Below you can see an example of script written in Perl language, but you can use your favourite language.

If you want to run the following example, make sure that:

• perl is installed in your system
• script dependencies are installed in your system
• yum install perl-CPAN
• cpan install JSON

example.agi

#!/usr/bin/perl -w

use strict;
use warnings;
use JSON qw( decode_json );

my $url = "https://jsonplaceholder.typicode.com/todos/1";

my $curl=`curl -k '$url'`;
# { "userId": 1, "id": 1, "title": "delectus aut autem", "completed": false }

my $decoded = decode_json($curl);

my $title = $decoded-{'title'};
print "SET VARIABLE RESULT_TITLE \"$title\"\\n";

my $userId = $decoded-{'userId'};
print "SET VARIABLE RESULT_USERID \"$userId\"\\n";

print "SET VARIABLE <CHANNEL_VARIABLE> \"<VARIABLE>\"\\n";

The script can be used as reference for your needs and remember to set properly the result of the cURL command:

Use script in Cally Square project

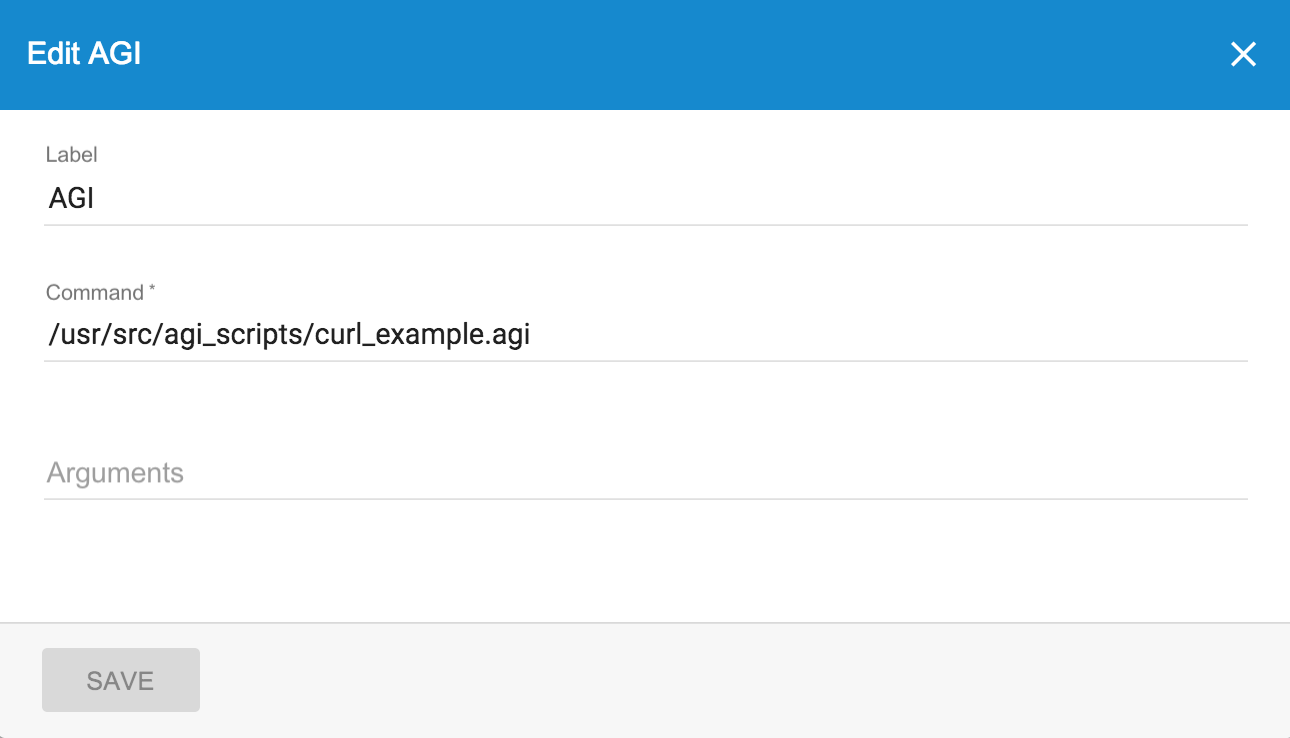

The script must be used as Command in AGI block:

example.agi is using needed permissions (execution)

And the variable set in the example.agi script will be available in Cally Square project.

As alternative of AGI Cally Square block, you can use System block assigning the result of the script as channel variable.
