How to check my XCALLY Motion Bull Dialer campaign status?

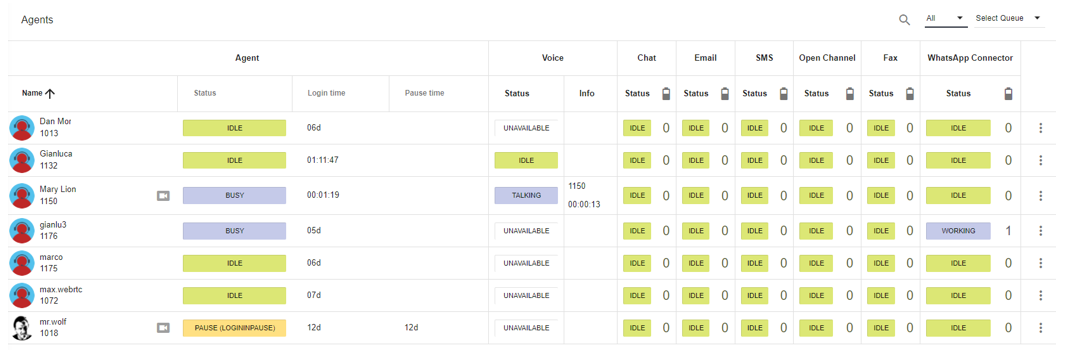

General view:

In Agents list you can see:

• Name and internal number

• Status, which can be:

  • IDLE if the Agent is currently not working on all the channels

  • BUSY if the Agent is currently working on one or more channels

  • PAUSE/DEFAULT PAUSE/LOGININPAUSE/CUSTOMPAUSE: if the Agent is in pause (one of the available types of pause or any Custom Pause defined in Tools: Pause)

  • ONHOLD if the Agent is currently on hold

  • Login Time: the time the Agent is logged in

  • Pause Time: the time the Agent is in Pause

Clicking on 3 dots menu you can:

1.

• Change the Agent Status to Logout or Pause

• Add/Remove the Agent to a Voice Queue (this change doesn't apply to interactions which are already ongoing and allows you to choose the queues from a list)

2.

• If the Agent is already in Pause you will see a different command menu with an End Pause command (you can also change the Pause type).

For all the Agents using the Phonebar (version 5.1.31.0 or later) that have the manual Screen Recording function activated and configured for the agent, there will be a special icon displaying that this feature is operational:

• if not in use at the moment the icon is grey:





• if in use at the moment the icon turns green:

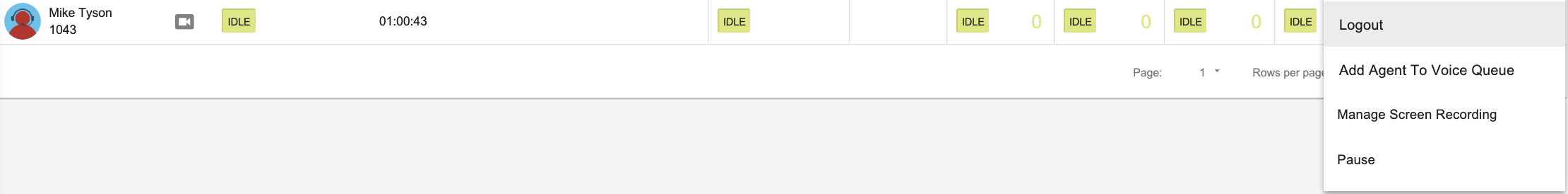

For the Agents that have this feature configured, in the three dots command menu there is also the entry Manage Screen Recording that can be used by the Supervisor to start/stop the screen recording from realtime:

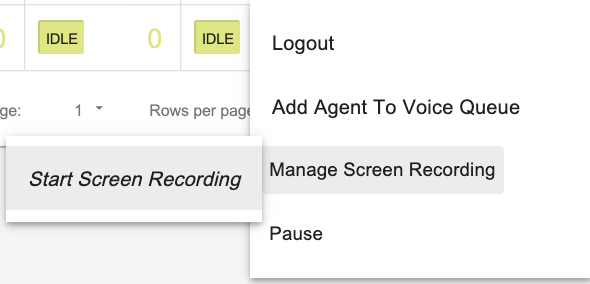

When you click on this entry, if the screen recording is off you can activated it:

Once started the available command in this section will be "Stop Screen Recording".

The Agent will be notified that the Screen Recording has been activated by the corresponding grey button on the Phonebar becoming red and blinking  for the whole recording session.

Channels View:

So for any available Channel installed on your XCALLY Motion server, you will see a specific column reporting the activities of the Agent:

• Voice shows the following information:

• Other Channels (Chat, Email, SMS, Open Channel and Fax) where the Agent activity can be one of the following:

  • IDLE: the Agent is not engaged in any interaction

  • WORKING: the Agent is currently engaged in an interaction

  • PAUSE: the Agent is in pause

For all the Channels, except the Voice channel, the Status can also be MAXCAPACITY when the number of the max concurrent open interactions for the Agent is reached:

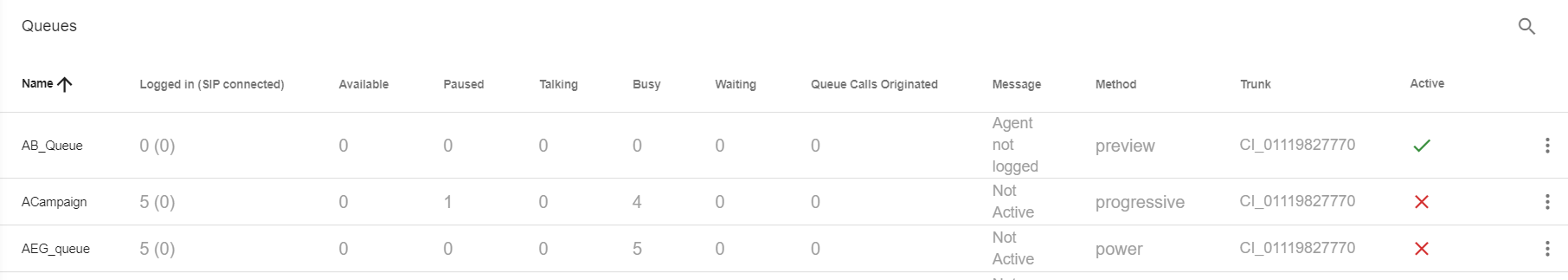

Queues

The Section Queues shows the list of queue campaigns with the following information:

• Logged In (SIP connected): number of agents logged in the queue and number of agents with connected/registered SIP.

• Available: number of agents in the queue campaign that are available to receive calls.

• Paused: number of agents paused in the queue campaign.

• Talking: number of agents in the queue campaign on an ongoing call.

• Busy: number of agents involved in a call in this or any other queue.

• Waiting: number of calls waiting in the queue campaign.

• Queue Calls Originated: number of dialed calls in the queue campaign waiting for a successful connection between an agent and a contact.

• Message: status of the queue campaign (see below for messages explanation)

• Method: dialing method set for the queue campaign.

• Trunk: the trunk being used in the queue campaign.

• Active: the state of the queue campaign (Active/Inactive).

Queue Campaign Messages:

The following is the list of messages values:

• Agent not logged: there are no available agents in the queue campaign

• Not Active: the queue campaign is inactive

• Interval is Null: the time interval set for the campaign does not exist. Hint: Check if the the time interval exists in Tools → Intervals section

• Timezone Unknown: the timezone set for the campaign is unknown. Hint: Check if the name of the timezone is correct in Queue Campaign→ Advanced section

• Interval is Empty: the time interval set for the campaign is empty. Hint: Check if the interval has subinterval(s) in Tools→ Intervals section.

• Out of Interval (Global): current time is outside the global time interval set for the campaign. Hint: Check the global time interval setting in Queue Campaign→ Advanced section.

• Out of Interval: current time is outside the time interval set for the campaign. Hint: Check time interval setting in Queue Campaign→ Settings section.

• Available contacts finished:  there are no contacts in line to be dialed by the dialer. Hint: The hopper is empty. Check in Queue Campaign→ Hopper section.

• Rescheduled contacts: there are contacts in the hopper that have been called at least once and will be called at the scheduled time. Hint: Check in Queue Campaign→ Hopper section.

• Running: the campaign is active

• Trunk is Not Reachable: the status of the SIP trunk registration to motion server is unreachable. Hint: Check the trunk configuration in Tools → Trunks section.

• Is Deactivated :  the campaign has been disabled but there are still agents talking or originated calls.

• Blacklist :  the contact in line to be called by the dialer is found to be in the blacklist.

• Recall Failed: the planned call has not been done

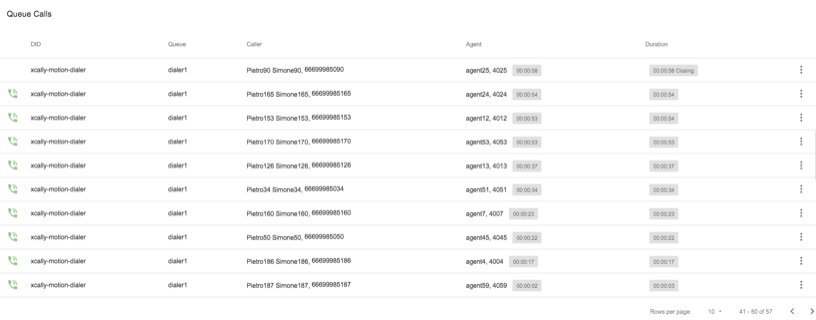

Queue Calls

The Section Queue calls shows real-time information about calls in queue campaigns.

• Queue: the queue campaign the call belongs to.

• Caller: the contact phone number.

• Agent: the agent that is managing the call.

• Duration: the time interval between when the call was answered and when it was completed.

You can hangup or transfer the call to another agent (this is only possible if the agent is in idle state) or number.

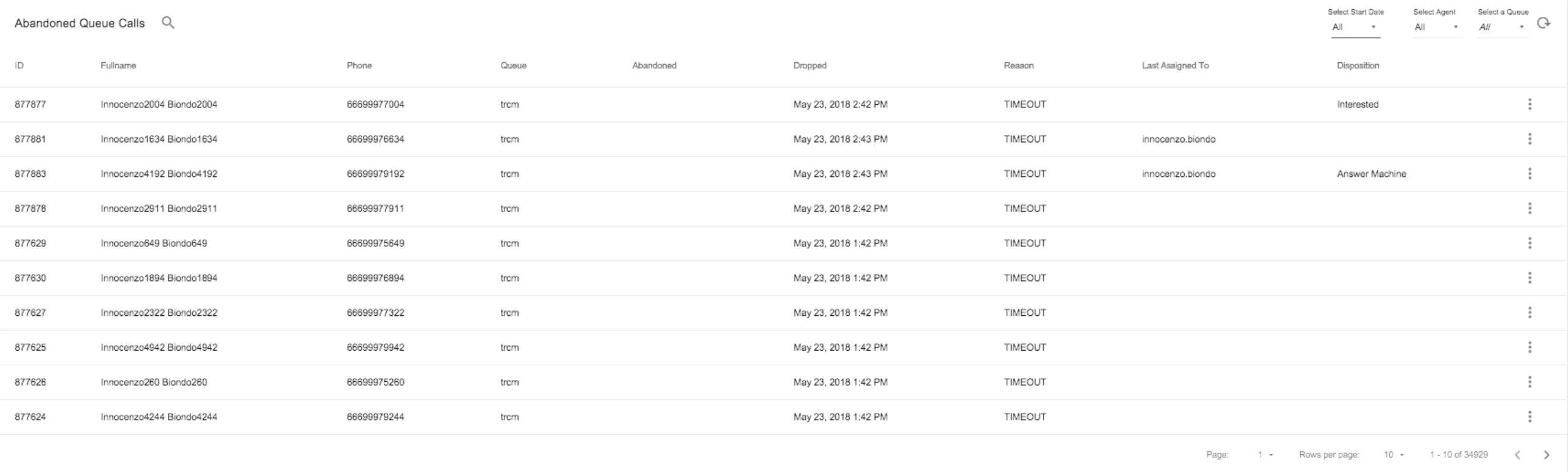

Abandoned Queue Calls

The Section Abandoned Queue Calls shows the list of the queue campaigns calls that have been abandoned before the Agent took the call:



The calls can be abandoned because the waiting time in the queue exceeded the timeout set (Reason: Timeout) or because the customer dropped (Reason: Dropped) it before the Agent answered.

The list can be filtered by:

• the call start date

• the Agent whom the call has been assigned to

• the queue the call entered

Clicking on 3 dots menu the Administrator can:

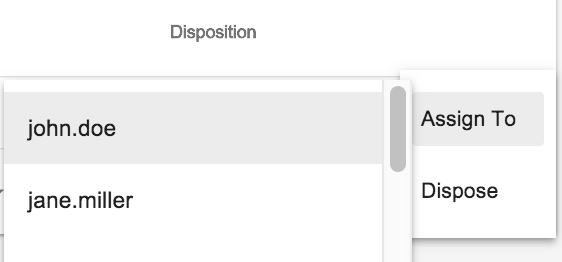

• assign a call to Agents:

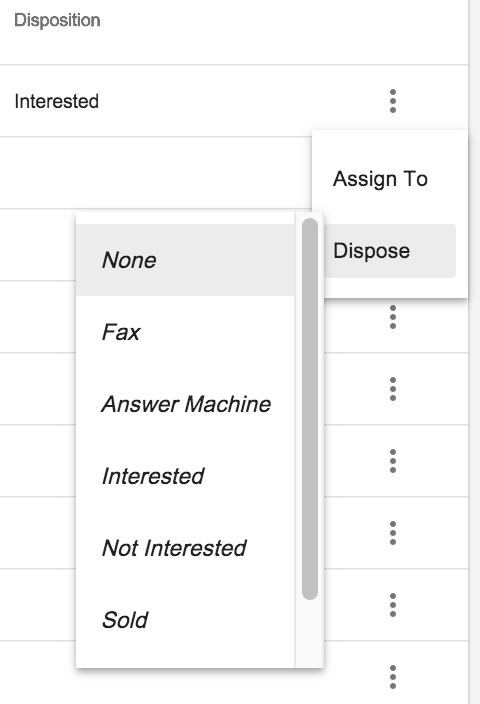

• add/change its disposition:

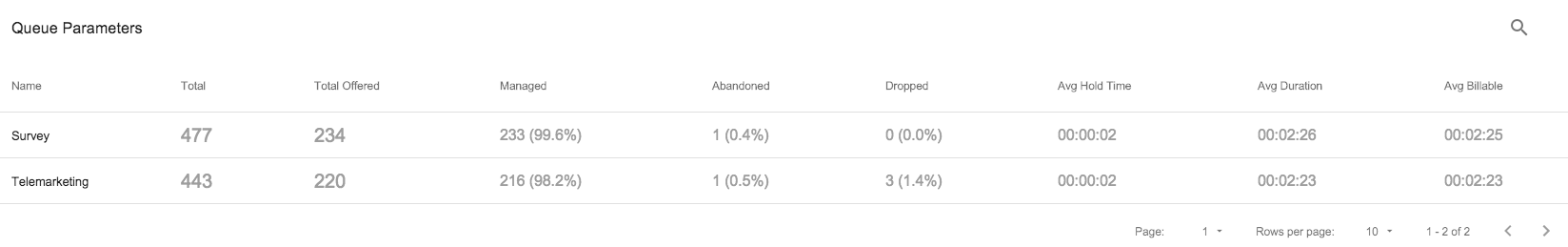

Queue Parameters

The Section Queue parameters shows the list of queue campaigns and the following information:

• Total: total number of calls dialed in the queue campaign, where Total = Answered + Abandoned + Dropped + No Answer + Busy + Congestion + No Such Extension + Unknown (Status not recognized by the system) + Originate Failure (The dialer fails to dial a number) + Blacklist.

• Total offered: total number of queue calls, where Total offered = Answered + Abandoned + Dropped

• Answered: total number of queue calls managed by agents.

• Abandoned: total number of queue calls abandoned by callers.

• Dropped: total number of calls dropped by the system after queue timeout expires.

• Avg Hold time: average amount of time calls spent waiting in the queue.

• Avg Duration: average duration of calls in the queue.

• Avg Billable: average billable time in the queue.

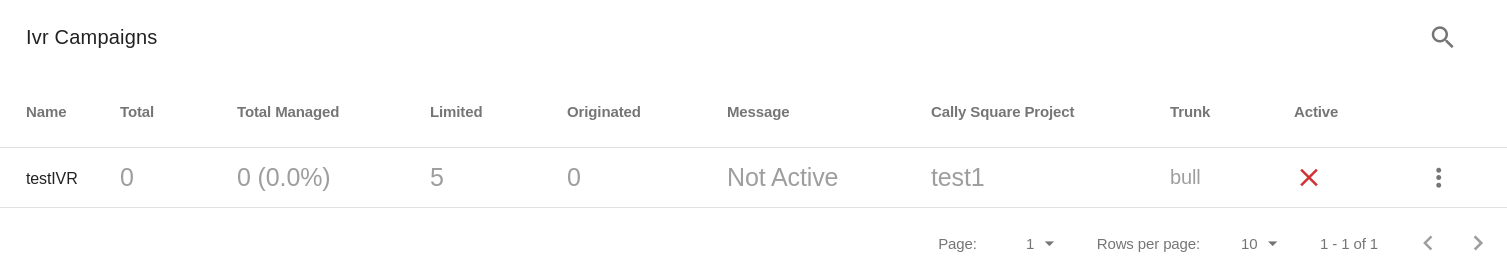

The IVR Campaign Realtime View

The Section IVR Campaigns shows the list of IVR campaigns and the following information:

• Name: name of the IVR campaign

• Total: total number of calls dialed in the IVR campaign

• Total Managed: total number of answered calls that have entered in the IVR

• Limited: the maximum number of concurrent calls that will be originated by the dialer for this campaign

• Originated: number of dialed calls waiting for a successful connection plus number of answered calls that are in the IVR

• Message: status of the IVR campaign (see below for messages explanation)

• Cally Square Project: the Cally Square project set for the IVR campaign

• Trunk: the trunk being used in the IVR campaign

• Active: the state of the IVR campaign (Active/Inactive)



IVR Campaign Messages:

The following is the list of messages values:

• Active: the campaign is active

• Not Active: the IVR campaign is inactive.

• Agent not Logged: there is no agent logged associated to the campaign

• Interval is Null: the time interval set for the campaign does not exist. Hint: Check if the the time interval exists in Tools → Intervals section.

• Timezone Unknown: the timezone set for the campaign is unknown. Hint: Check if the name of the timezone is correct in IVR Campaign→ Advanced section.

• Interval is Empty: the time interval set for the campaign is empty. Hint: Check if the interval has subinterval(s) in Tools→ Intervals section.

• Out of Interval (Global): current time is outside the global time interval set for the campaign. Hint: Check the global time interval setting in IVR Campaign→ Advanced section.

• Out of Interval: current time is outside the time interval set for the campaign. Hint: Check time interal setting in IVR Campaign→ Settings section.

• Available contacts finished: there are no contacts to be dialed by the dialer. Hint: The hopper is empty. Check in IVR Campaign→ Hopper section.

• Rescheduled contacts: there are contacts in the hopper that have been called at least once and will be called at the scheduled time. Hint: Check in IVR Campaign→ Hopper section.

• Running: the campaign is active.

• Trunk is Not Reachable: the status of the SIP trunk registration to motion server is unreachable. Hint: Check the trunk configuration in Tools → Trunks section.

• Deactivated :  the campaign has been disabled but there are still originated calls.

• Blacklist :  the contact in line to be called by the dialer is found to be in the blacklist.
